Name: TPS72730YFFT
Brand: Texas Instruments
SKU: TPS72730YFFT
Price: 1.74 USD
Availability: InStock

REF: TPS72730YFFT Texas Instruments

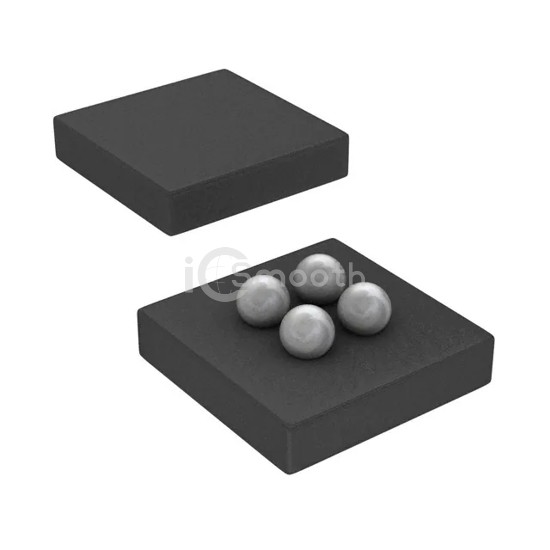

TPS72730YFFT

IC REG LINEAR 3V 250MA 4DSBGA

TPS72730YFFT is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR 3V 250MA 4DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 4-UFBGA, DSBGA, current - supply (max) 130 µA.

Datasheet Request a Quote

In Stock: 2,164

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.2V @ 200mA
Current - Output	250mA

Current - Quiescent (Iq)	110 µA
Current - Supply (Max)	130 µA
PSRR	85dB ~ 45dB (10Hz ~ 1MHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	4-UFBGA, DSBGA
Supplier Device Package	4-DSBGA (1x1)
