Name: TPS72501DCQR
Brand: Texas Instruments
SKU: TPS72501DCQR
Price: 4.91 USD
Availability: InStock

REF: TPS72501DCQR Texas Instruments

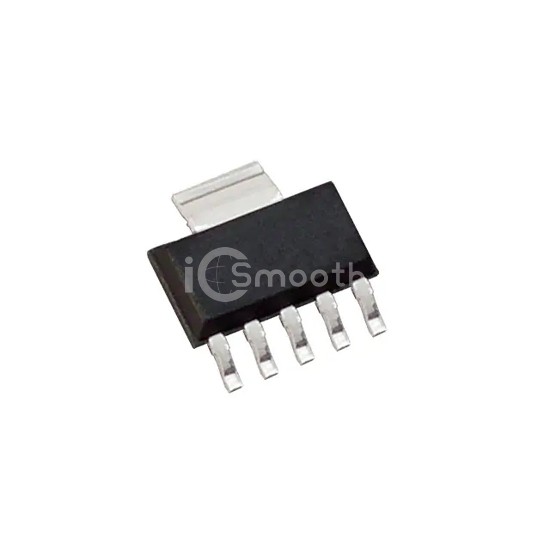

TPS72501DCQR

IC REG LINEAR POS ADJ 1A SOT223

TPS72501DCQR is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR POS ADJ 1A SOT223. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case SOT-223-6, current - supply (max) 325 µA.

Datasheet Request a Quote

In Stock: 7,365

Tiered Pricing USD

1+ $4.9100 —

10+ $3.7400 -24%

25+ $3.4468 -30%

100+ $3.1248 -36%

250+ $2.9712 -39%

500+ $2.8787 -41%

1,000+ $2.8025 -43% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	1.22V
Voltage - Output (Max)	5.5V
Voltage Dropout (Max)	0.28V @ 1A
Current - Output	1A

Current - Quiescent (Iq)	225 µA
Current - Supply (Max)	325 µA
PSRR	60dB (1kHz)
Control Features	Enable, Reset
Protection Features	Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	SOT-223-6
Supplier Device Package	SOT-223-6
