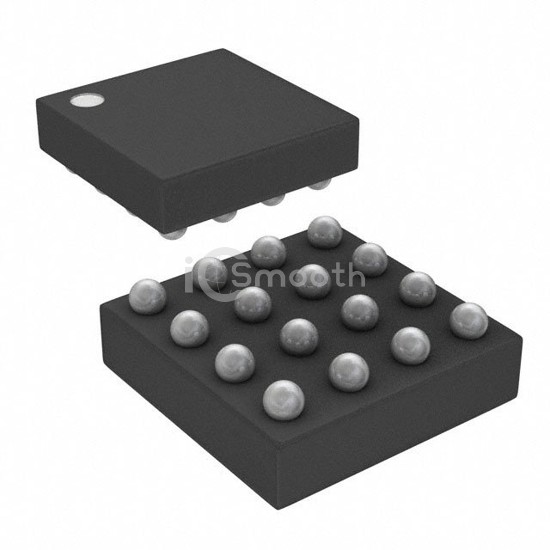

Name: TPS62770YFPT
Brand: Texas Instruments
SKU: TPS62770YFPT
Price: 2.64 USD
Availability: InStock

REF: TPS62770YFPT Texas Instruments

TPS62770YFPT

IC REG BUCK BST PROG DL 16DSBGA

TPS62770YFPT is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Texas Instruments. IC REG BUCK BST PROG DL 16DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-XFBGA, DSBGA, current - output 300mA, 30mA, 100mA, 200mA.

Datasheet Request a Quote

In Stock: 16

Tiered Pricing USD

1+ $2.6400 —

10+ $1.9640 -26%

25+ $1.7956 -32%

100+ $1.6109 -39% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Up, Step-Down
Output Configuration	Positive
Topology	Buck, Boost
Output Type	Programmable
Number of Outputs	2
Voltage - Input (Min)	2.5V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1V, 4.5V (12V)

Voltage - Output (Max)	3V, 15V
Current - Output	300mA, 30mA, 100mA, 200mA
Frequency - Switching	1.05MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-XFBGA, DSBGA
Supplier Device Package	16-DSBGA (1.6x1.6)
