Name: TPS563900DAP
Brand: Texas Instruments
SKU: TPS563900DAP
Price: 3.33 USD
Availability: InStock

REF: TPS563900DAP Texas Instruments

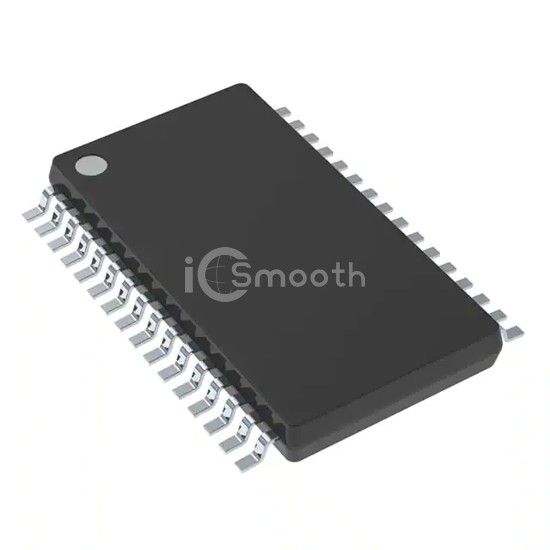

TPS563900DAP

IC REG BUCK ADJ/PROG 32HTSSOP

TPS563900DAP is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Texas Instruments. IC REG BUCK ADJ/PROG 32HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 32-TSSOP (0.240", 6.10mm Width) Exposed Pad, current - output 3.5A.

Datasheet Request a Quote

In Stock: 3,602

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable (Programmable)
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	18V
Voltage - Output (Min/Fixed)	0.68V

Voltage - Output (Max)	1.95V
Current - Output	3.5A
Frequency - Switching	200kHz ~ 1.6MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	32-TSSOP (0.240", 6.10mm Width) Exposed Pad
Supplier Device Package	32-HTSSOP
