TPS54560QDDAQ1

In Stock: 5,289

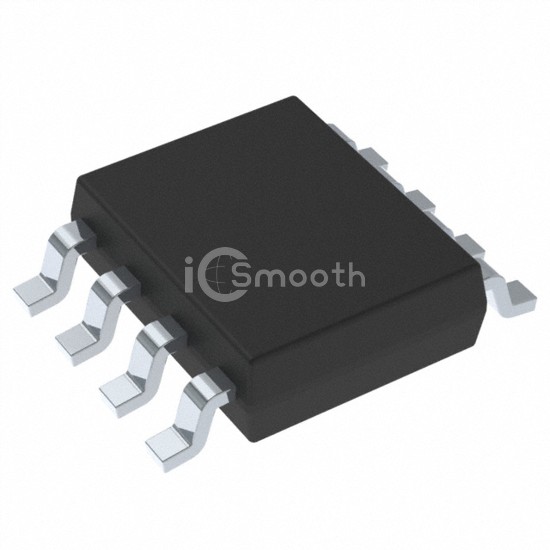

TPS54560QDDAQ1 - Texas Instruments - PMIC - Voltage Regulators - DC DC Switching Regulators
REF: TPS54560QDDAQ1 Texas Instruments
TPS54560QDDAQ1

Texas Instruments

IC REG BCK SPLIT RAIL ADJ 8SOPWR

TPS54560QDDAQ1 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Texas Instruments. IC REG BCK SPLIT RAIL ADJ 8SOPWR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 8-PowerSOIC (0.154", 3.90mm Width), current - output 5A.

Datasheet Request a Quote

In Stock: 5,289

Tiered Pricing USD
1+ $8.0600 —
10+ $6.2810 -22%
75+ $5.4315 -33%
150+ $5.2340 -35%
300+ $5.2025 -35% BEST

Specifications

17 parameters
Product StatusNot For New Designs
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck, Split Rail
Output TypeAdjustable
Number of Outputs1
Voltage - Input (Min)4.5V
Voltage - Input (Max)60V
Voltage - Output (Min/Fixed)0.8V
Voltage - Output (Max)58.8V
Current - Output5A
Frequency - Switching100kHz ~ 2.5MHz
Synchronous RectifierNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package8-SO PowerPad
