Name: TPS54240DGQ
Brand: Texas Instruments
SKU: TPS54240DGQ
Price: 4.13 USD
Availability: InStock

REF: TPS54240DGQ Texas Instruments

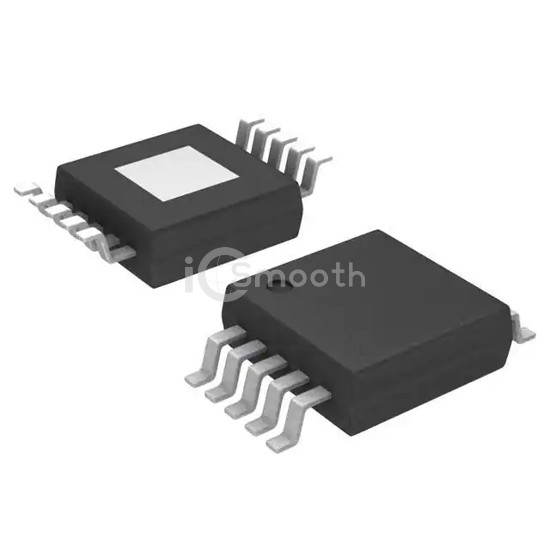

TPS54240DGQ

IC REG BCK SPLIT RAIL ADJ 10MSOP

TPS54240DGQ is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Texas Instruments. IC REG BCK SPLIT RAIL ADJ 10MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width), current - output 2.5A.

Datasheet Request a Quote

In Stock: 5,860

Tiered Pricing USD

1+ $4.1300 —

10+ $3.1280 -24%

80+ $2.6379 -36%

160+ $2.5286 -39%

320+ $2.4386 -41%

560+ $2.3777 -42%

1,040+ $2.3206 -44%

2,560+ $2.2534 -45% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck, Split Rail
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	3.5V
Voltage - Input (Max)	42V
Voltage - Output (Min/Fixed)	0.8V

Voltage - Output (Max)	39V
Current - Output	2.5A
Frequency - Switching	100kHz ~ 2.5MHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package	10-HVSSOP
