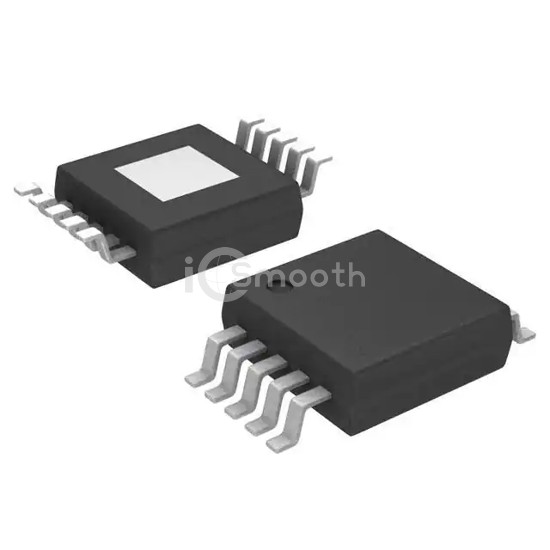

Name: TPS54060DGQR
Brand: Texas Instruments
SKU: TPS54060DGQR
Price: 2.33 USD
Availability: InStock

REF: TPS54060DGQR Texas Instruments

TPS54060DGQR

IC REG BCK SPLIT RAIL ADJ 10MSOP

TPS54060DGQR is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Texas Instruments. IC REG BCK SPLIT RAIL ADJ 10MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width), current - output 500mA.

Datasheet Request a Quote

In Stock: 9,923

Tiered Pricing USD

1+ $2.3300 —

10+ $1.7310 -26%

25+ $1.5804 -32%

100+ $1.4146 -39%

250+ $1.3355 -43%

500+ $1.2878 -45%

1,000+ $1.2486 -46% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck, Split Rail
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	3.5V
Voltage - Input (Max)	60V
Voltage - Output (Min/Fixed)	0.8V

Voltage - Output (Max)	58V
Current - Output	500mA
Frequency - Switching	100kHz ~ 2.5MHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package	10-HVSSOP
