Name: TPS54060DGQ
Brand: Texas Instruments
SKU: TPS54060DGQ
Price: 3.46 USD
Availability: InStock

REF: TPS54060DGQ Texas Instruments

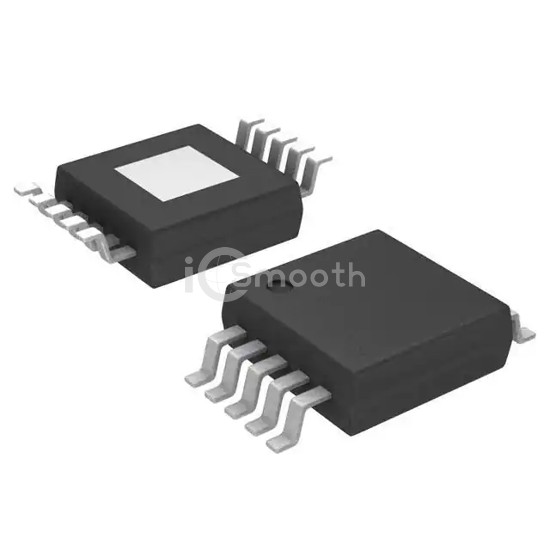

TPS54060DGQ

IC REG BCK SPLIT RAIL ADJ 10MSOP

TPS54060DGQ is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Texas Instruments. IC REG BCK SPLIT RAIL ADJ 10MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width), current - output 500mA.

Datasheet Request a Quote

In Stock: 9,981

Tiered Pricing USD

1+ $3.4600 —

10+ $2.6060 -25%

80+ $2.1870 -37%

160+ $2.0936 -39%

320+ $2.0167 -42%

560+ $1.9646 -43%

1,040+ $1.9158 -45%

2,560+ $1.8584 -46%

5,040+ $1.8238 -47% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck, Split Rail
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	3.5V
Voltage - Input (Max)	60V
Voltage - Output (Min/Fixed)	0.8V

Voltage - Output (Max)	58V
Current - Output	500mA
Frequency - Switching	100kHz ~ 2.5MHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package	10-HVSSOP
