Name: TPS54040DGQ
Brand: Texas Instruments
SKU: TPS54040DGQ
Price: 2.80 USD
Availability: InStock

REF: TPS54040DGQ Texas Instruments

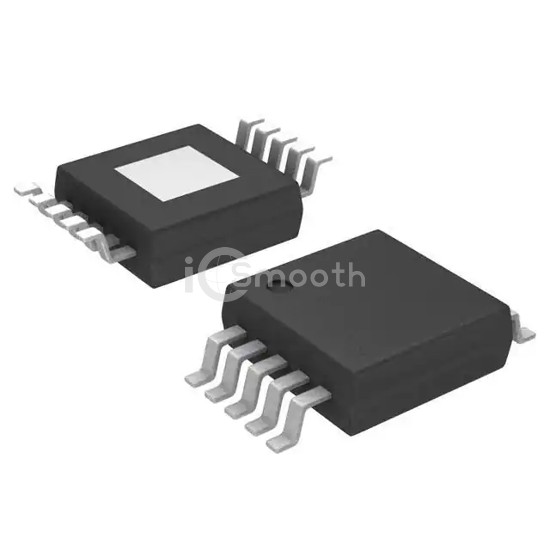

TPS54040DGQ

IC REG BUCK ADJ 500MA 10MSOP

TPS54040DGQ is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Texas Instruments. IC REG BUCK ADJ 500MA 10MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width), current - output 500mA.

Datasheet Request a Quote

In Stock: 2,804

Tiered Pricing USD

1+ $2.8000 —

10+ $2.0900 -25%

80+ $1.7443 -38%

160+ $1.6671 -40%

320+ $1.6035 -43%

560+ $1.5604 -44%

1,040+ $1.5201 -46%

2,560+ $1.4726 -47%

5,040+ $1.4440 -48% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	3.5V
Voltage - Input (Max)	42V
Voltage - Output (Min/Fixed)	0.8V

Voltage - Output (Max)	39V
Current - Output	500mA
Frequency - Switching	100kHz ~ 2.5MHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package	10-HVSSOP
