TPS536C7B1RSLT

In Stock: 8,235

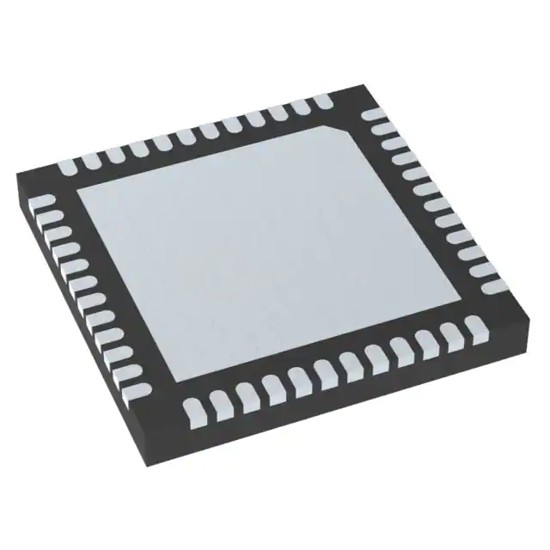

TPS536C7B1RSLT - Texas Instruments - PMIC - Voltage Regulators - DC DC Switching Controllers
REF: TPS536C7B1RSLT Texas Instruments
TPS536C7B1RSLT

Texas Instruments

DUAL-CHANNEL D-CAP+, PMBU

TPS536C7B1RSLT is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. DUAL-CHANNEL D-CAP+, PMBU. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 18V, package / case 48-VFQFN Exposed Pad.

Request a Quote

In Stock: 8,235

Tiered Pricing USD
1+ $13.7000 —
10+ $10.8020 -21%
25+ $10.0772 -26%
100+ $9.2808 -32% BEST

Specifications

18 parameters
Product StatusActive
Output TypeTransistor Driver
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Number of Outputs12
Output Phases12
Voltage - Supply (Vcc/Vdd)4.5V ~ 18V
Frequency - Switching300kHz ~ 2MHz
Duty Cycle (Max)50%
Synchronous RectifierNo
Clock SyncYes
Serial InterfacesPMBus
Control FeaturesCurrent Limit, Enable, Frequency Control, Phase Control, Ramp
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case48-VFQFN Exposed Pad
Supplier Device Package48-VQFN (6x6)
