Name: TPS5120DBTR
Brand: Texas Instruments
SKU: TPS5120DBTR
Price: 9.38 USD
Availability: InStock

REF: TPS5120DBTR Texas Instruments

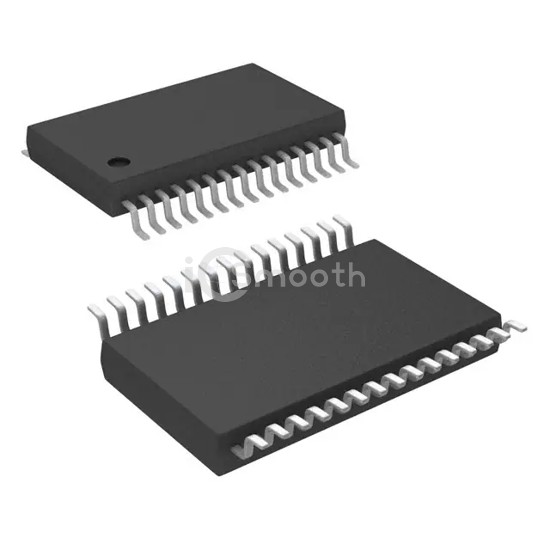

TPS5120DBTR

IC REG CTRLR BUCK 30TSSOP

TPS5120DBTR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR BUCK 30TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 28V, package / case 30-TFSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 154

Tiered Pricing USD

1+ $9.3800 —

10+ $7.2990 -22%

25+ $6.7804 -28%

100+ $6.2096 -34%

250+ $5.9376 -37%

500+ $5.7737 -38%

1,000+ $5.6387 -40% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	2
Output Phases	2
Voltage - Supply (Vcc/Vdd)	4.5V ~ 28V
Frequency - Switching	300kHz

Duty Cycle (Max)	83%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Enable, Power Good, Soft Start
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	30-TFSOP (0.173", 4.40mm Width)
Supplier Device Package	30-TSSOP
