Name: TPS5120DBT
Brand: Texas Instruments
SKU: TPS5120DBT
Price: 10.98 USD
Availability: InStock

REF: TPS5120DBT Texas Instruments

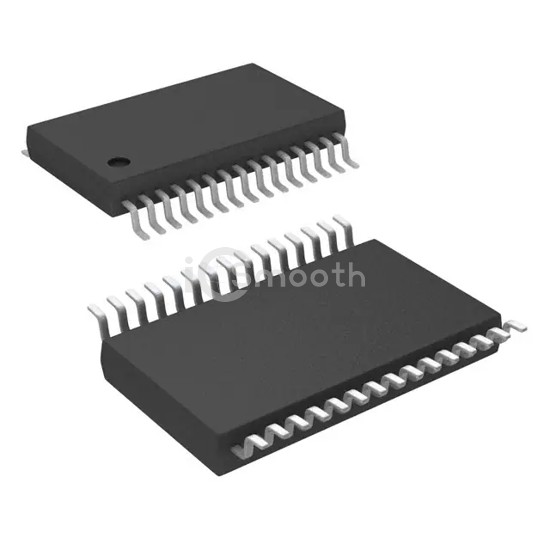

TPS5120DBT

IC REG CTRLR BUCK 30TSSOP

TPS5120DBT is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR BUCK 30TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 28V, package / case 30-TFSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 7,915

Tiered Pricing USD

1+ $10.9800 —

10+ $8.5950 -22%

60+ $7.5550 -31%

120+ $7.2737 -34%

300+ $6.9766 -36%

540+ $6.8226 -38%

1,020+ $6.6823 -39% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	2
Output Phases	2
Voltage - Supply (Vcc/Vdd)	4.5V ~ 28V
Frequency - Switching	300kHz

Duty Cycle (Max)	83%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Enable, Power Good, Soft Start
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	30-TFSOP (0.173", 4.40mm Width)
Supplier Device Package	30-TSSOP
