Name: TPS40211DGQR
Brand: Texas Instruments
SKU: TPS40211DGQR
Price: 1.85 USD
Availability: InStock

REF: TPS40211DGQR Texas Instruments

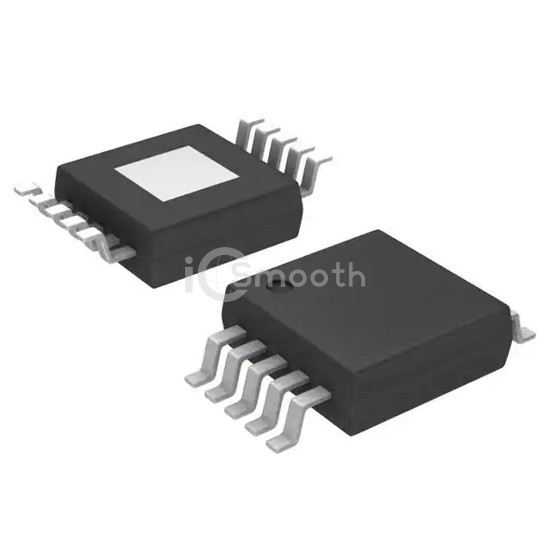

TPS40211DGQR

IC REG CTRLR MULT TOP 10MSOP

TPS40211DGQR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR MULT TOP 10MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 52V, package / case 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width).

Datasheet Request a Quote

In Stock: 4,696

Tiered Pricing USD

1+ $1.8500 —

10+ $1.3610 -26%

25+ $1.2384 -33%

100+ $1.1038 -40%

250+ $1.0396 -44%

500+ $1.0009 -46%

1,000+ $0.9691 -48% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Up, Step-Up/Step-Down
Output Configuration	Positive
Topology	Boost, Flyback, SEPIC
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	4.5V ~ 52V
Frequency - Switching	35kHz ~ 1MHz

Duty Cycle (Max)	-
Synchronous Rectifier	No
Clock Sync	Yes
Serial Interfaces	-
Control Features	Enable, Frequency Control, Soft Start
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package	10-HVSSOP
