Name: TPS40140RHHTG4
Brand: Texas Instruments
SKU: TPS40140RHHTG4
Price: 3.83 USD
Availability: InStock

REF: TPS40140RHHTG4 Texas Instruments

TPS40140RHHTG4

Texas Instruments

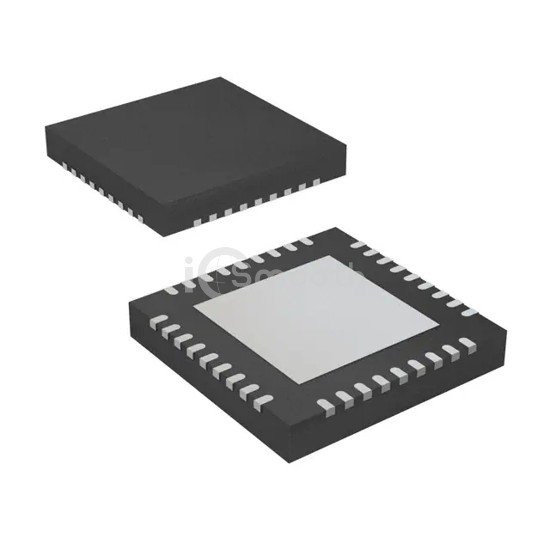

IC REG CTRLR BUCK 36QFN

TPS40140RHHTG4 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR BUCK 36QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 15V, package / case 36-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 7,715

Tiered Pricing USD

250+ $3.8345 —

500+ $3.7202 -3%

750+ $3.6630 -4%

1,250+ $3.5996 -6%

1,750+ $3.5625 -7%

2,500+ $3.5269 -8% BEST

Specifications

18 parameters

Product Status	Discontinued at Digi-Key
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	2
Output Phases	2
Voltage - Supply (Vcc/Vdd)	4.5V ~ 15V
Frequency - Switching	150kHz ~ 1MHz

Duty Cycle (Max)	87.5%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Frequency Control, Phase Control, Power Good, Tracking
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	36-VFQFN Exposed Pad
Supplier Device Package	36-VQFN (6x6)
