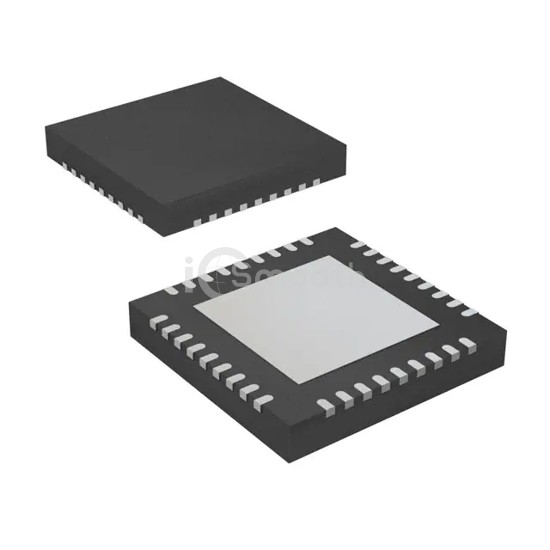

Name: TPS40140RHHR
Brand: Texas Instruments
SKU: TPS40140RHHR
Price: 7.96 USD
Availability: InStock

REF: TPS40140RHHR Texas Instruments

TPS40140RHHR

IC REG CTRLR BUCK 36QFN

TPS40140RHHR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR BUCK 36QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 15V, package / case 36-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,462

Tiered Pricing USD

1+ $7.9600 —

10+ $6.1640 -23%

25+ $5.7144 -28%

100+ $5.2204 -34%

250+ $4.9849 -37%

500+ $4.8430 -39%

1,000+ $4.7262 -41% BEST

Specifications

18 parameters

Product Status	Not For New Designs
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	2
Output Phases	2
Voltage - Supply (Vcc/Vdd)	4.5V ~ 15V
Frequency - Switching	150kHz ~ 1MHz

Duty Cycle (Max)	87.5%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Frequency Control, Phase Control, Power Good, Tracking
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	36-VFQFN Exposed Pad
Supplier Device Package	36-VQFN (6x6)
