Name: TPS40130DBT
Brand: Texas Instruments
SKU: TPS40130DBT
Price: 5.96 USD
Availability: InStock

REF: TPS40130DBT Texas Instruments

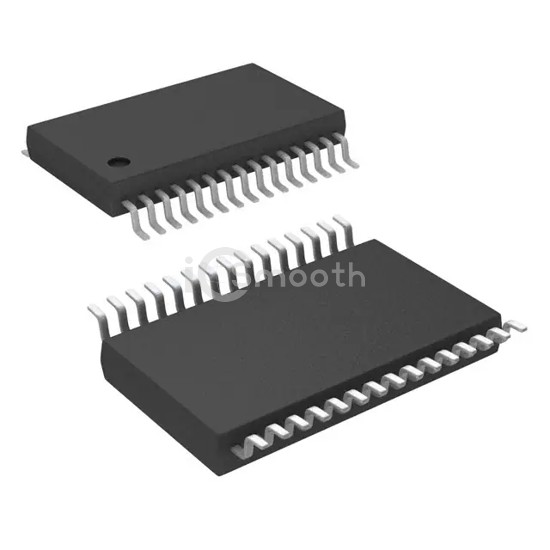

TPS40130DBT

IC REG CTRLR BUCK 30TSSOP

TPS40130DBT is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR BUCK 30TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 3V ~ 40V, package / case 30-TFSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 7,508

Specifications

18 parameters

Product Status	Not For New Designs
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	2
Output Phases	2
Voltage - Supply (Vcc/Vdd)	3V ~ 40V
Frequency - Switching	100kHz ~ 1.2MHz

Duty Cycle (Max)	87.5%
Synchronous Rectifier	Yes
Clock Sync	Yes
Serial Interfaces	-
Control Features	Current Limit, Enable, Frequency Control, Power Good, Soft Start
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	30-TFSOP (0.173", 4.40mm Width)
Supplier Device Package	30-TSSOP
