Name: TPS40091RHDT
Brand: Texas Instruments
SKU: TPS40091RHDT
Price: 2.85 USD
Availability: InStock

REF: TPS40091RHDT Texas Instruments

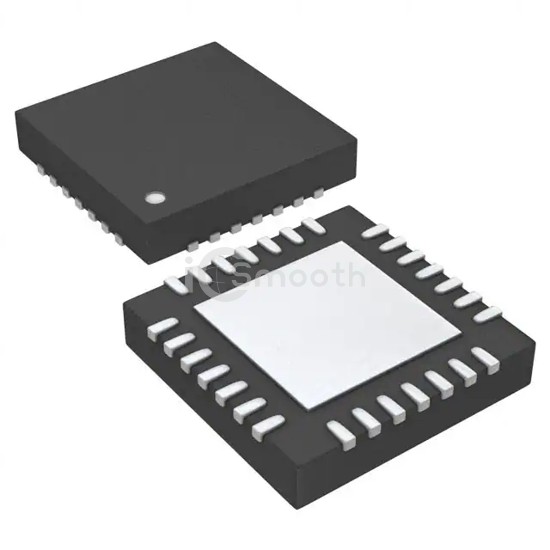

TPS40091RHDT

IC REG CTRLR BUCK 28VQFN

TPS40091RHDT is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR BUCK 28VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 15V, package / case 28-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,000

Tiered Pricing USD

250+ $2.8512 —

500+ $2.7618 -3%

750+ $2.7170 -5%

1,250+ $2.6674 -6%

1,750+ $2.6383 -7%

2,500+ $2.6105 -8% BEST

Specifications

18 parameters

Product Status	Obsolete
Output Type	PWM Signal
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	4
Output Phases	4
Voltage - Supply (Vcc/Vdd)	4.5V ~ 15V
Frequency - Switching	100kHz ~ 1.2MHz

Duty Cycle (Max)	87.5%
Synchronous Rectifier	No
Clock Sync	Yes
Serial Interfaces	-
Control Features	Current Limit, Enable, Frequency Control, Power Good, Soft Start
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	28-VFQFN Exposed Pad
Supplier Device Package	28-VQFN (5x5)
