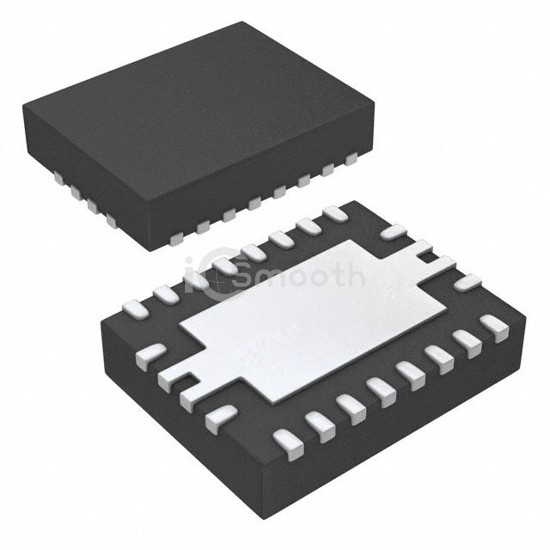

Name: TPS40074RHLR
Brand: Texas Instruments
SKU: TPS40074RHLR
Price: 3.79 USD
Availability: InStock

REF: TPS40074RHLR Texas Instruments

TPS40074RHLR

IC REG CTRLR BUCK 20VQFN

TPS40074RHLR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR BUCK 20VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 28V, package / case 20-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 6,735

Tiered Pricing USD

1+ $3.7900 —

10+ $2.8590 -25%

25+ $2.6260 -31%

100+ $2.3705 -37%

250+ $2.2486 -41%

500+ $2.1752 -43%

1,000+ $2.1147 -44% BEST

Specifications

18 parameters

Product Status	Not For New Designs
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	4.5V ~ 28V
Frequency - Switching	Up to 1MHz

Duty Cycle (Max)	95%
Synchronous Rectifier	Yes
Clock Sync	Yes
Serial Interfaces	-
Control Features	Current Limit, Enable, Frequency Control, Power Good, Soft Start
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	20-VFQFN Exposed Pad
Supplier Device Package	20-VQFN (3.5x4.5)
