Name: TPS40001DGQ
Brand: Texas Instruments
SKU: TPS40001DGQ
Price: 2.00 USD
Availability: InStock

REF: TPS40001DGQ Texas Instruments

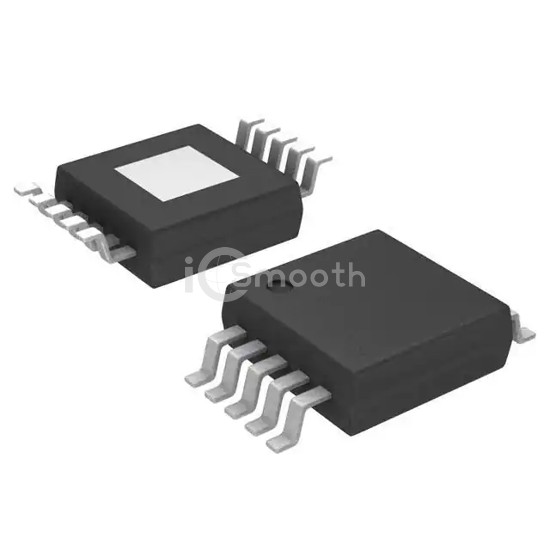

TPS40001DGQ

IC REG CTRLR BUCK 10MSOP

TPS40001DGQ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR BUCK 10MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.25V ~ 5.5V, package / case 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width).

Datasheet Request a Quote

In Stock: 5,842

Specifications

18 parameters

Product Status	Not For New Designs
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	2.25V ~ 5.5V
Frequency - Switching	300kHz

Duty Cycle (Max)	94%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Enable, Soft Start
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package	10-HVSSOP
