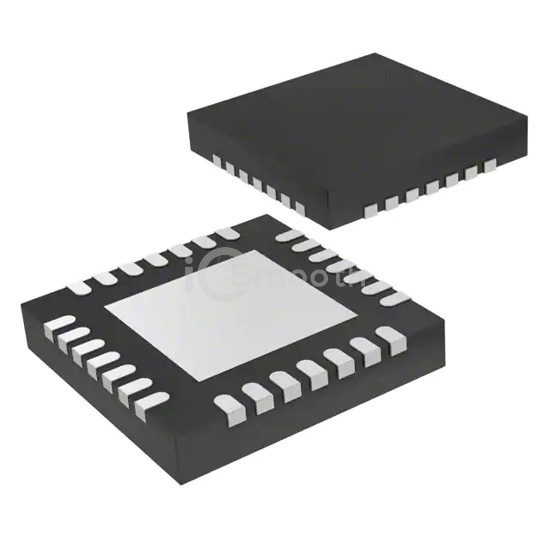

Name: TPS274160ARLHR
Brand: Texas Instruments
SKU: TPS274160ARLHR
Price: 3.07 USD
Availability: InStock

REF: TPS274160ARLHR Texas Instruments

TPS274160ARLHR

Texas Instruments

40-V, 160-M, 4-CHANNEL SMART HIG

TPS274160ARLHR is a PMIC - Power Distribution Switches, Load Drivers manufactured by Texas Instruments. 40-V, 160-M, 4-CHANNEL SMART HIG. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 28-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,089

Tiered Pricing USD

1+ $3.0700 —

10+ $2.2990 -25%

25+ $2.1060 -31%

100+ $1.8943 -38%

250+ $1.7933 -42%

500+ $1.7324 -44%

1,000+ $1.6823 -45% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	4
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	5V ~ 36V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	1.35A
Rds On (Typ)	160mOhm
Input Type	Non-Inverting
Features	-
Fault Protection	Current Limiting (Adjustable), Over Temperature, Short Circuit, UVLO
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	28-WQFN (4x5)
Package / Case	28-WFQFN Exposed Pad
