Name: TPS2556QDRBTQ1
Brand: Texas Instruments
SKU: TPS2556QDRBTQ1
Price: 1.76 USD
Availability: InStock

REF: TPS2556QDRBTQ1 Texas Instruments

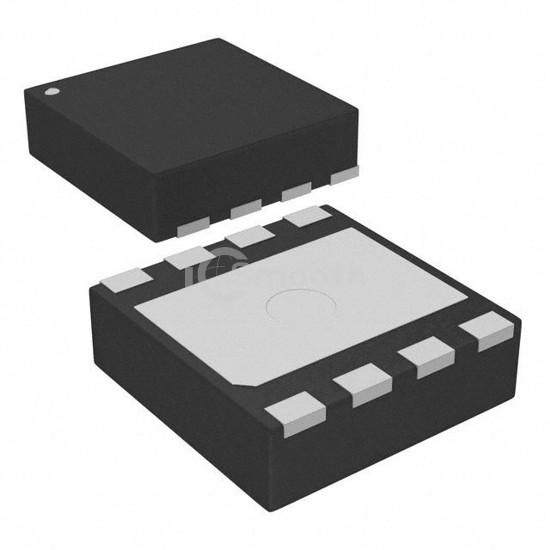

TPS2556QDRBTQ1

Texas Instruments

IC PWR SWITCH N-CHAN 1:1 8SON

TPS2556QDRBTQ1 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Texas Instruments. IC PWR SWITCH N-CHAN 1:1 8SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 8-VDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,785

Tiered Pricing USD

1+ $1.7600 —

10+ $1.2950 -26%

25+ $1.1784 -33%

100+ $1.0493 -40% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	2.5V ~ 6.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	5A
Rds On (Typ)	22mOhm
Input Type	Non-Inverting
Features	Slew Rate Controlled, Status Flag
Fault Protection	Current Limiting (Adjustable), Over Temperature, UVLO
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SON (3x3)
Package / Case	8-VDFN Exposed Pad
