Name: TPS22976DPUT
Brand: Texas Instruments
SKU: TPS22976DPUT
Price: 1.14 USD
Availability: InStock

REF: TPS22976DPUT Texas Instruments

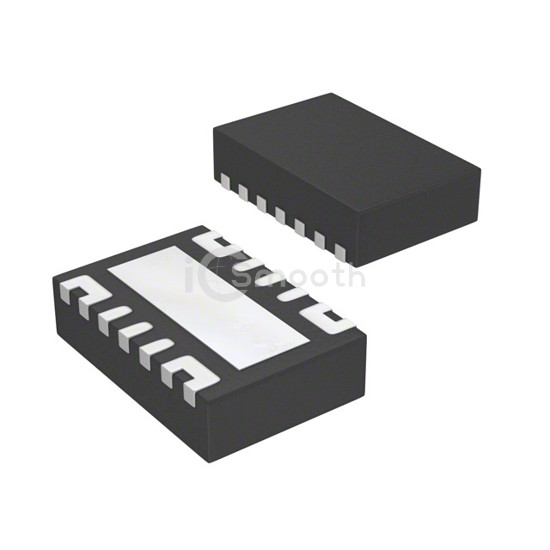

TPS22976DPUT

IC PWR SWITCH N-CHAN 1:1 14WSON

TPS22976DPUT is a PMIC - Power Distribution Switches, Load Drivers manufactured by Texas Instruments. IC PWR SWITCH N-CHAN 1:1 14WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - load 2.5V ~ 5.7V, package / case 14-PowerWFDFN.

Datasheet Request a Quote

In Stock: 5,431

Tiered Pricing USD

1+ $1.1400 —

10+ $0.8250 -28%

25+ $0.7456 -35%

100+ $0.6587 -42% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	2
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	2.5V ~ 5.7V
Voltage - Supply (Vcc/Vdd)	-

Current - Output (Max)	6A
Rds On (Typ)	14mOhm
Input Type	-
Features	Load Discharge
Fault Protection	Over Temperature
Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	14-WSON (3x2)
Package / Case	14-PowerWFDFN
