Name: TPS22969DNYT
Brand: Texas Instruments
SKU: TPS22969DNYT
Price: 2.10 USD
Availability: InStock

REF: TPS22969DNYT Texas Instruments

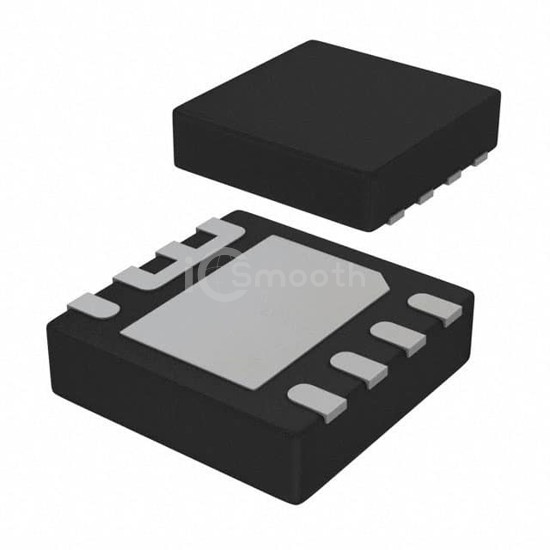

TPS22969DNYT

IC PWR SWITCH N-CHAN 1:1 8WSON

TPS22969DNYT is a PMIC - Power Distribution Switches, Load Drivers manufactured by Texas Instruments. IC PWR SWITCH N-CHAN 1:1 8WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 0.8V ~ 5.5V, package / case 8-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 7,479

Tiered Pricing USD

1+ $2.1000 —

10+ $1.5490 -26%

25+ $1.4124 -33%

100+ $1.2619 -40% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	2.5V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	0.8V ~ 5.5V

Current - Output (Max)	6A
Rds On (Typ)	4.4mOhm
Input Type	Non-Inverting
Features	Load Discharge, Slew Rate Controlled
Fault Protection	-
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-WSON (3x3)
Package / Case	8-WDFN Exposed Pad
