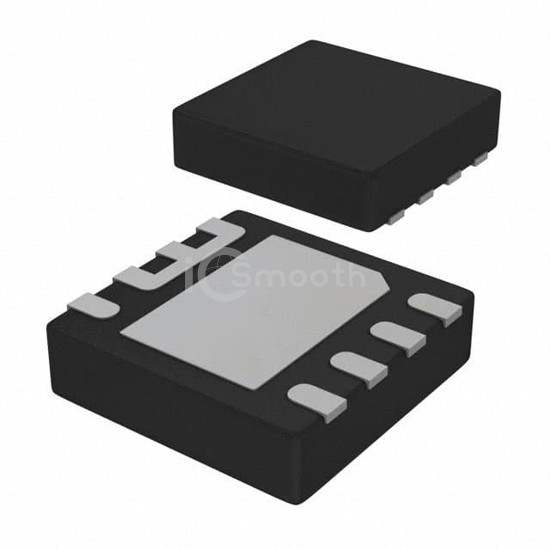

Name: TPS22969DNYR
Brand: Texas Instruments
SKU: TPS22969DNYR
Price: 1.61 USD
Availability: InStock

REF: TPS22969DNYR Texas Instruments

TPS22969DNYR

IC PWR SWITCH N-CHAN 1:1 8WSON

TPS22969DNYR is a PMIC - Power Distribution Switches, Load Drivers manufactured by Texas Instruments. IC PWR SWITCH N-CHAN 1:1 8WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 0.8V ~ 5.5V, package / case 8-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,140

Tiered Pricing USD

1+ $1.6100 —

10+ $1.1770 -27%

25+ $1.0696 -34%

100+ $0.9508 -41%

250+ $0.8942 -44%

500+ $0.8601 -47%

1,000+ $0.8320 -48% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	2.5V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	0.8V ~ 5.5V

Current - Output (Max)	6A
Rds On (Typ)	4.4mOhm
Input Type	Non-Inverting
Features	Load Discharge, Slew Rate Controlled
Fault Protection	-
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-WSON (3x3)
Package / Case	8-WDFN Exposed Pad
