Name: TPS22966DPUT
Brand: Texas Instruments
SKU: TPS22966DPUT
Price: 1.54 USD
Availability: InStock

REF: TPS22966DPUT Texas Instruments

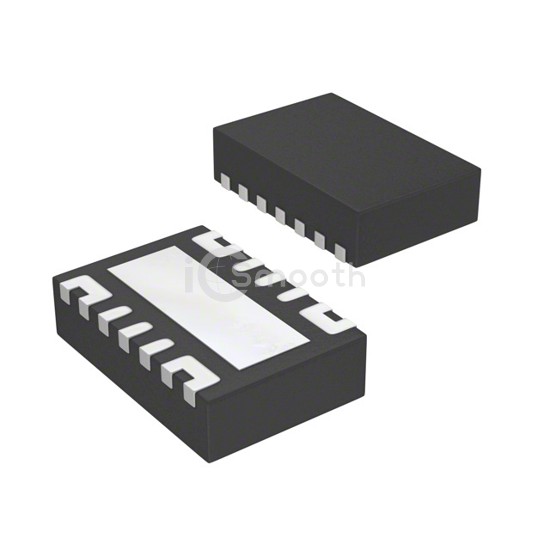

TPS22966DPUT

IC PWR SWITCH N-CHAN 1:1 14WSON

TPS22966DPUT is a PMIC - Power Distribution Switches, Load Drivers manufactured by Texas Instruments. IC PWR SWITCH N-CHAN 1:1 14WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 0.8V ~ 5.5V, package / case 14-PowerWFDFN.

Datasheet Request a Quote

In Stock: 4,174

Tiered Pricing USD

1+ $1.5400 —

10+ $1.1230 -27%

25+ $1.0192 -34%

100+ $0.9053 -41% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	2
Ratio - Input:Output	1:1
Output Configuration	High Side or Low Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	2.5V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	0.8V ~ 5.5V

Current - Output (Max)	6A
Rds On (Typ)	18mOhm
Input Type	Non-Inverting
Features	Load Discharge
Fault Protection	-
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	14-WSON (3x2)
Package / Case	14-PowerWFDFN
