Name: TPS22960DCNR
Brand: Texas Instruments
SKU: TPS22960DCNR
Price: 0.89 USD
Availability: InStock

REF: TPS22960DCNR Texas Instruments

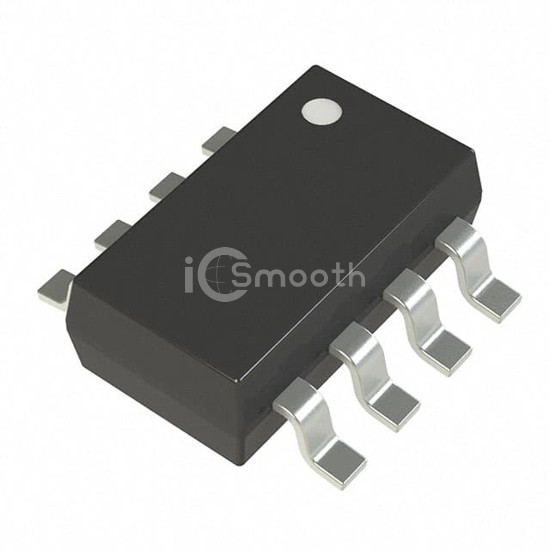

TPS22960DCNR

IC PWR SWITCH P-CHAN 1:1 SOT23-8

TPS22960DCNR is a PMIC - Power Distribution Switches, Load Drivers manufactured by Texas Instruments. IC PWR SWITCH P-CHAN 1:1 SOT23-8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case SOT-23-8.

Datasheet Request a Quote

In Stock: 2,556

Tiered Pricing USD

1+ $0.8900 —

10+ $0.6370 -28%

25+ $0.5740 -36%

100+ $0.5046 -43%

250+ $0.4715 -47%

500+ $0.4515 -49%

1,000+ $0.4351 -51% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	2
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	P-Channel
Interface	On/Off
Voltage - Load	1.62V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	500mA
Rds On (Typ)	342mOhm
Input Type	Non-Inverting
Features	Load Discharge, Slew Rate Controlled
Fault Protection	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-8
Package / Case	SOT-23-8
