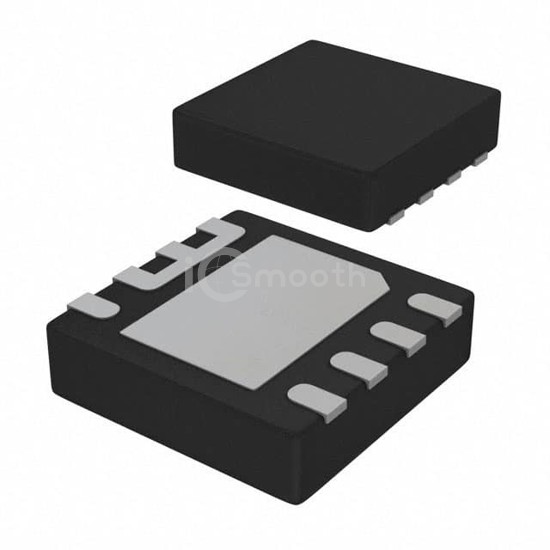

Name: TPS22959DNYR
Brand: Texas Instruments
SKU: TPS22959DNYR
Price: 1.58 USD
Availability: InStock

REF: TPS22959DNYR Texas Instruments

TPS22959DNYR

IC PWR SWITCH N-CHAN 1:1 8WSON

TPS22959DNYR is a PMIC - Power Distribution Switches, Load Drivers manufactured by Texas Instruments. IC PWR SWITCH N-CHAN 1:1 8WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - load 0.8V ~ 5.5V, package / case 8-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,491

Tiered Pricing USD

1+ $1.5800 —

10+ $1.1530 -27%

25+ $1.0468 -34%

100+ $0.9305 -41%

250+ $0.8749 -45%

500+ $0.8414 -47%

1,000+ $0.8138 -48% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	0.8V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	-

Current - Output (Max)	15A
Rds On (Typ)	4.4mOhm
Input Type	Non-Inverting
Features	Load Discharge, Slew Rate Controlled
Fault Protection	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	8-WSON (3x3)
Package / Case	8-WDFN Exposed Pad
