Name: TPS22954DQCR
Brand: Texas Instruments
SKU: TPS22954DQCR
Price: 0.75 USD
Availability: InStock

REF: TPS22954DQCR Texas Instruments

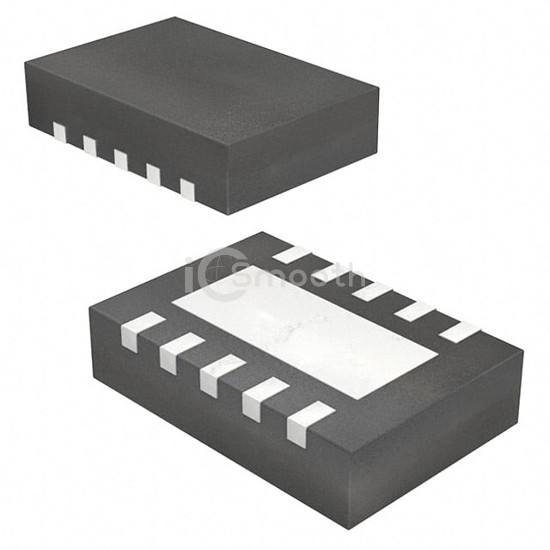

TPS22954DQCR

IC PWR SWITCH N-CHAN 1:1 10WSON

TPS22954DQCR is a PMIC - Power Distribution Switches, Load Drivers manufactured by Texas Instruments. IC PWR SWITCH N-CHAN 1:1 10WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 10-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 6,074

Tiered Pricing USD

1+ $0.7500 —

10+ $0.5340 -29%

25+ $0.4796 -36%

100+ $0.4202 -44%

250+ $0.3918 -48%

500+ $0.3747 -50%

1,000+ $0.3607 -52% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	2.5V ~ 5.7V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	5A
Rds On (Typ)	14mOhm
Input Type	Non-Inverting
Features	Auto Restart, Load Discharge, Power Good, Slew Rate Controlled
Fault Protection	Over Temperature, UVLO
Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	10-WSON (3x2)
Package / Case	10-WFDFN Exposed Pad
