Name: TPS22949ADRGR
Brand: Texas Instruments
SKU: TPS22949ADRGR
Price: 0.77 USD
Availability: InStock

REF: TPS22949ADRGR Texas Instruments

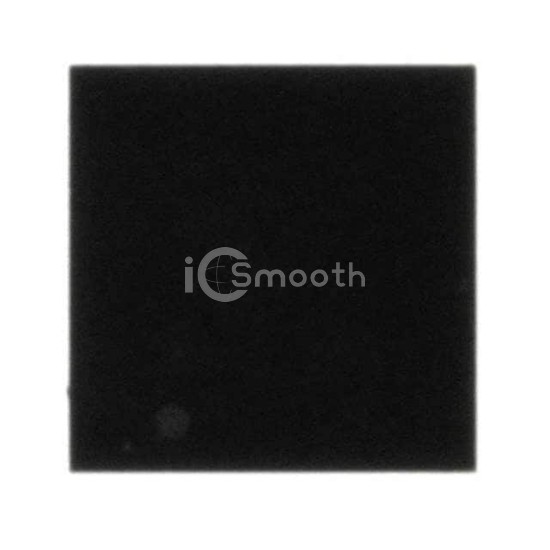

TPS22949ADRGR

Texas Instruments

IC PWR SWITCH P-CHAN 1:1 8SON

TPS22949ADRGR is a PMIC - Power Distribution Switches, Load Drivers manufactured by Texas Instruments. IC PWR SWITCH P-CHAN 1:1 8SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 8-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 60,294

Tiered Pricing USD

3,000+ $0.7730 —

6,000+ $0.7564 -2%

9,000+ $0.7481 -3% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	2
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	P-Channel
Interface	On/Off
Voltage - Load	1.62V ~ 4.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	100mA
Rds On (Typ)	400mOhm
Input Type	Non-Inverting
Features	Auto Restart, Load Discharge
Fault Protection	Current Limiting (Fixed), Over Temperature
Operating Temperature	-40°C ~ 105°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SON (3x3)
Package / Case	8-WFDFN Exposed Pad
