Name: TPS2236DAPR
Brand: Texas Instruments
SKU: TPS2236DAPR
Price: 1.64 USD
Availability: InStock

REF: TPS2236DAPR Texas Instruments

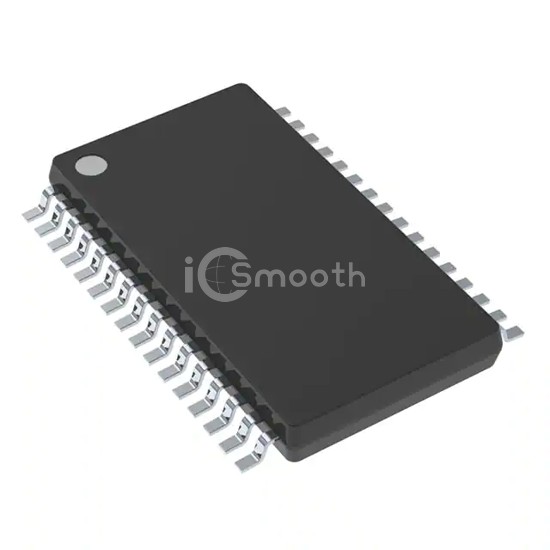

TPS2236DAPR

IC PWR SWITCH 1:2 32HTSSOP

TPS2236DAPR is a PMIC - Power Distribution Switches, Load Drivers manufactured by Texas Instruments. IC PWR SWITCH 1:2 32HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 32-TSSOP (0.240", 6.10mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 8,000

Tiered Pricing USD

2,000+ $1.6437 —

4,000+ $1.6097 -2%

6,000+ $1.5927 -3% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Type	ExpressCard™ Switch
Number of Outputs	6
Ratio - Input:Output	1:2
Output Configuration	High Side
Output Type	-
Interface	-
Voltage - Load	1.5V, 3.3V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	1.3A
Rds On (Typ)	45mOhm
Input Type	-
Features	Power Good, Status Flag
Fault Protection	Current Limiting (Fixed), Over Temperature
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	32-HTSSOP
Package / Case	32-TSSOP (0.240", 6.10mm Width) Exposed Pad
