Name: TPS2226ADB
Brand: Texas Instruments
SKU: TPS2226ADB
Price: 7.53 USD
Availability: InStock

REF: TPS2226ADB Texas Instruments

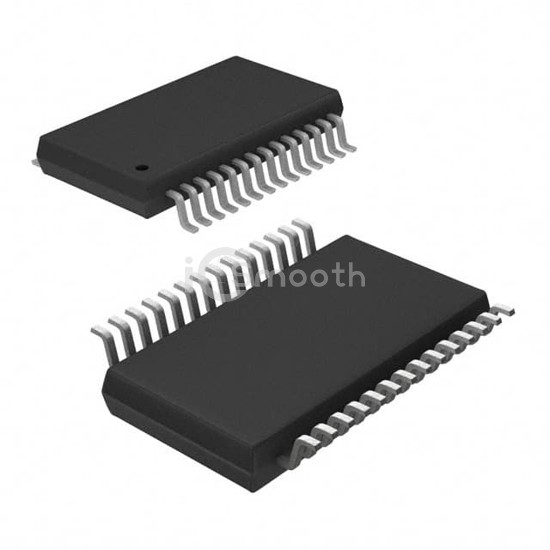

TPS2226ADB

IC PWR SWITCH 3:4 30SSOP

TPS2226ADB is a PMIC - Power Distribution Switches, Load Drivers manufactured by Texas Instruments. IC PWR SWITCH 3:4 30SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 30-SSOP (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 100

Tiered Pricing USD

1+ $7.5300 —

10+ $5.8220 -23%

50+ $5.1358 -32%

100+ $4.9234 -35%

250+ $4.6991 -38%

500+ $4.5640 -39%

1,000+ $4.4527 -41% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	PCMCIA Switch
Number of Outputs	4
Ratio - Input:Output	3:4
Output Configuration	High Side
Output Type	-
Interface	Serial
Voltage - Load	3.3V, 5V, 12V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	1A
Rds On (Typ)	95mOhm
Input Type	-
Features	Status Flag
Fault Protection	Current Limiting (Fixed), Over Temperature
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	30-SSOP
Package / Case	30-SSOP (0.209", 5.30mm Width)
