Name: TPS2206ADB
Brand: Texas Instruments
SKU: TPS2206ADB
Price: 4.11 USD
Availability: InStock

REF: TPS2206ADB Texas Instruments

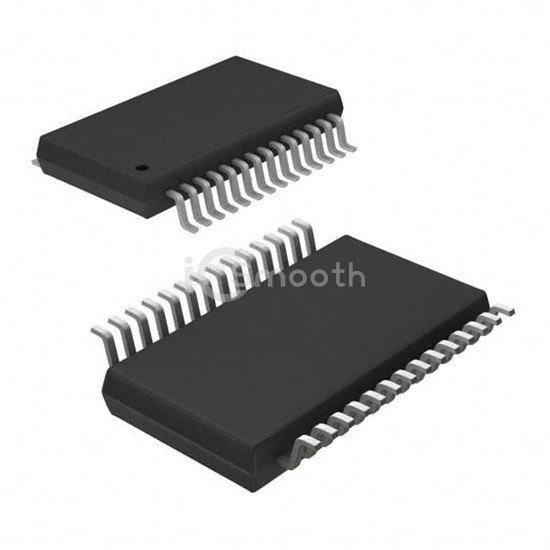

TPS2206ADB

IC PWR SWITCH 3:4 30SSOP

TPS2206ADB is a PMIC - Power Distribution Switches, Load Drivers manufactured by Texas Instruments. IC PWR SWITCH 3:4 30SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 30-SSOP (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 4,917

Specifications

18 parameters

Product Status	Active
Switch Type	PCMCIA Switch
Number of Outputs	4
Ratio - Input:Output	3:4
Output Configuration	High Side
Output Type	-
Interface	Serial
Voltage - Load	3.3V, 5V, 12V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	1A
Rds On (Typ)	95mOhm
Input Type	-
Features	Status Flag
Fault Protection	Current Limiting (Fixed), Over Temperature
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	30-SSOP
Package / Case	30-SSOP (0.209", 5.30mm Width)
