Name: TPD2E2U06DCKR
Brand: Texas Instruments
SKU: TPD2E2U06DCKR
Price: 0.40 USD
Availability: InStock

REF: TPD2E2U06DCKR Texas Instruments

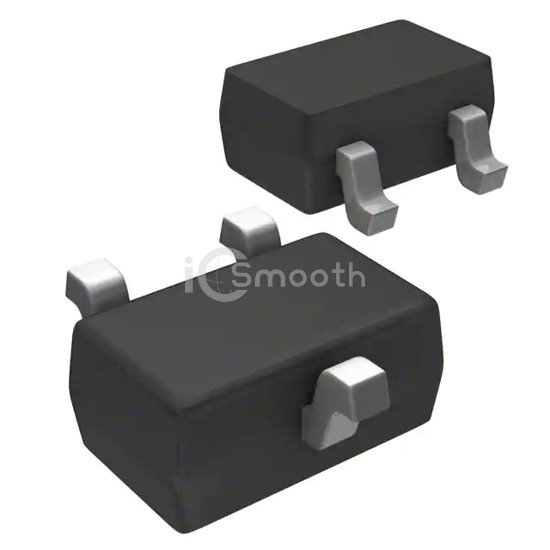

TPD2E2U06DCKR

Texas Instruments

TVS DIODE 5.5VWM 12.4VC SC70-3

TPD2E2U06DCKR is a TVS - Diodes manufactured by Texas Instruments. TVS DIODE 5.5VWM 12.4VC SC70-3. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case SC-70, SOT-323.

Datasheet Request a Quote

In Stock: 9,449

Tiered Pricing USD

1+ $0.4000 —

10+ $0.2660 -34%

100+ $0.1570 -61%

500+ $0.1190 -70%

1,000+ $0.1040 -74% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	2
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5.5V (Max)
Voltage - Breakdown (Min)	6.5V
Voltage - Clamping (Max) @ Ipp	12.4V (Typ)
Current - Peak Pulse (10/1000µs)	5.5A (8/20µs)

Power - Peak Pulse	75W
Power Line Protection	No
Applications	Ethernet, USB 2.0
Capacitance @ Frequency	1.5pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	SC-70, SOT-323
Supplier Device Package	SC-70-3
