Name: TPD2E1B06DRLR
Brand: Texas Instruments
SKU: TPD2E1B06DRLR
Price: 0.67 USD
Availability: InStock

REF: TPD2E1B06DRLR Texas Instruments

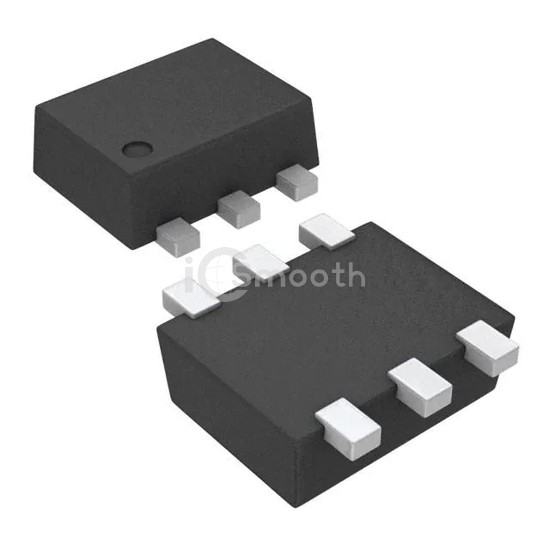

TPD2E1B06DRLR

Texas Instruments

TVS DIODE 5.5VWM 15VC 6SOT

TPD2E1B06DRLR is a TVS - Diodes manufactured by Texas Instruments. TVS DIODE 5.5VWM 15VC 6SOT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case SOT-563, SOT-666.

Datasheet Request a Quote

In Stock: 1,130

Tiered Pricing USD

1+ $0.6700 —

10+ $0.4170 -38%

100+ $0.2670 -60%

500+ $0.2030 -70%

1,000+ $0.1820 -73%

2,000+ $0.1622 -76% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	-
Bidirectional Channels	2
Voltage - Reverse Standoff (Typ)	5.5V (Max)
Voltage - Breakdown (Min)	7V
Voltage - Clamping (Max) @ Ipp	15V (Typ)
Current - Peak Pulse (10/1000µs)	2.5A (8/20µs)

Power - Peak Pulse	35W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-563, SOT-666
Supplier Device Package	SOT-5X3
