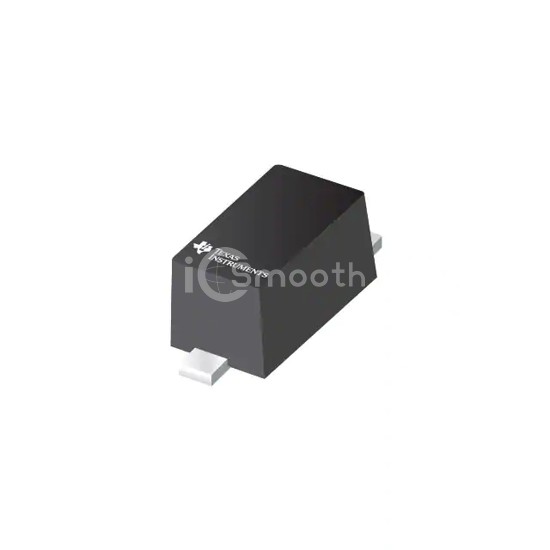

Name: TPD1E05U06DYAR
Brand: Texas Instruments
SKU: TPD1E05U06DYAR
Price: 0.22 USD
Availability: InStock

REF: TPD1E05U06DYAR Texas Instruments

TPD1E05U06DYAR

Texas Instruments

0.4-PF, 5.5-V, 12-KV ESD PROTECT

TPD1E05U06DYAR is a TVS - Diodes manufactured by Texas Instruments. 0.4-PF, 5.5-V, 12-KV ESD PROTECT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case SC-79, SOD-523.

Datasheet Request a Quote

In Stock: 3,000

Tiered Pricing USD

1+ $0.2200 —

10+ $0.1490 -32%

25+ $0.1316 -40%

100+ $0.1125 -49%

250+ $0.1033 -53%

500+ $0.0977 -56%

1,000+ $0.0932 -58% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5.5V (Max)
Voltage - Breakdown (Min)	6.5V
Voltage - Clamping (Max) @ Ipp	14V (Typ)
Current - Peak Pulse (10/1000µs)	2.5A (8/20µs)

Power - Peak Pulse	40W
Power Line Protection	Yes
Applications	HDMI, USB
Capacitance @ Frequency	0.42pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	SC-79, SOD-523
Supplier Device Package	SOT-5X3
