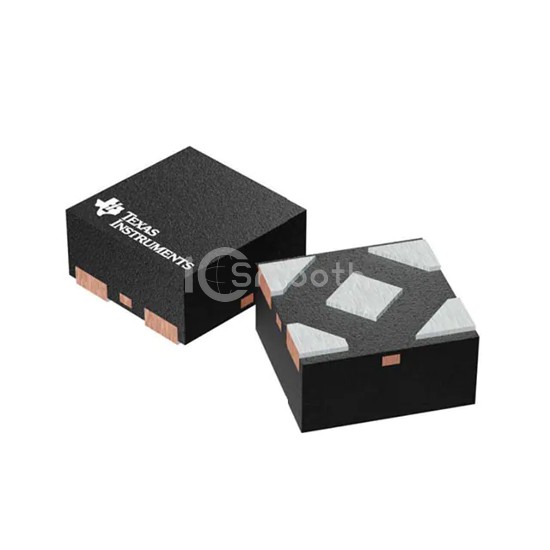

Name: TLV9041IDPWR
Brand: Texas Instruments
SKU: TLV9041IDPWR
Price: 0.26 USD
Availability: InStock

REF: TLV9041IDPWR Texas Instruments

TLV9041IDPWR

SINGLE, 5.5-V, 350-KHZ, ULTRA-LO

TLV9041IDPWR is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Texas Instruments. SINGLE, 5.5-V, 350-KHZ, ULTRA-LO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 5-XFDFN Exposed Pad, current - supply 10µA.

Datasheet Request a Quote

In Stock: 3,000

Specifications

17 parameters

Product Status	Active
Amplifier Type	General Purpose
Number of Circuits	1
Output Type	Push-Pull, Rail-to-Rail
Slew Rate	0.2V/µs
Gain Bandwidth Product	350 kHz
-3db Bandwidth	-
Current - Input Bias	1 pA
Voltage - Input Offset	600 µV

Current - Supply	10µA
Current - Output / Channel	40 mA
Voltage - Supply Span (Min)	1.2 V
Voltage - Supply Span (Max)	5.5 V
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	5-XFDFN Exposed Pad
Supplier Device Package	5-X2SON (0.8x0.8)
