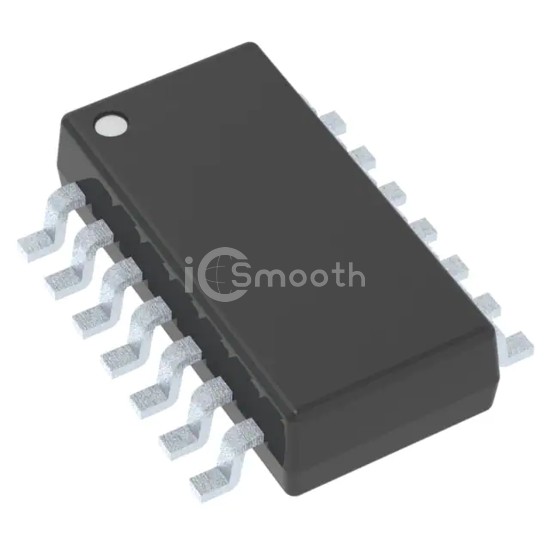

Name: TLV9004IDYYR
Brand: Texas Instruments
SKU: TLV9004IDYYR
Price: 0.93 USD
Availability: InStock

REF: TLV9004IDYYR Texas Instruments

TLV9004IDYYR

QUAD, 5.5-V, 1-MHZ, RRIO OPERATI

TLV9004IDYYR is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Texas Instruments. QUAD, 5.5-V, 1-MHZ, RRIO OPERATI. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case SOT-23-14 Thin, SOT-23 Variant, current - supply 60µA (x4 Channels).

Request a Quote

In Stock: 6,078

Specifications

17 parameters

Product Status	Active
Amplifier Type	CMOS
Number of Circuits	4
Output Type	Rail-to-Rail
Slew Rate	2V/µs
Gain Bandwidth Product	1 MHz
-3db Bandwidth	-
Current - Input Bias	5 pA
Voltage - Input Offset	400 mV

Current - Supply	60µA (x4 Channels)
Current - Output / Channel	40 mA
Voltage - Supply Span (Min)	1.8 V
Voltage - Supply Span (Max)	5.5 V
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-23-14 Thin, SOT-23 Variant
Supplier Device Package	14-SOT-23-THIN
