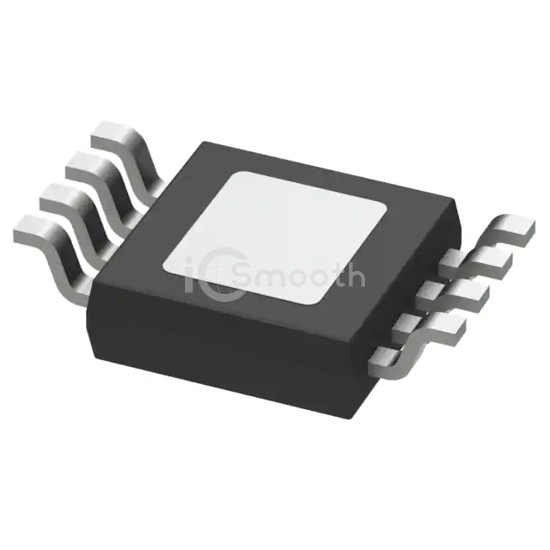

Name: TLV76701DGNR
Brand: Texas Instruments
SKU: TLV76701DGNR
Price: 0.94 USD
Availability: InStock

REF: TLV76701DGNR Texas Instruments

TLV76701DGNR

ADJUSTABLE- AND FIXED-OUTPUT, 1-

TLV76701DGNR is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. ADJUSTABLE- AND FIXED-OUTPUT, 1-. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), supplier device package 8-HVSSOP, current - output 1A.

Datasheet Request a Quote

In Stock: 4,069

Tiered Pricing USD

1+ $0.9400 —

10+ $0.6750 -28%

25+ $0.6084 -35%

100+ $0.5353 -43%

250+ $0.5005 -47%

500+ $0.4795 -49%

1,000+ $0.4622 -51% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	16V
Voltage - Output (Min/Fixed)	0.8V
Voltage - Output (Max)	14.6V
Voltage Dropout (Max)	1.5V @ 1A
Current - Output	1A

Current - Quiescent (Iq)	80 µA
Current - Supply (Max)	-
PSRR	70dB (120Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	-
Supplier Device Package	8-HVSSOP
