Name: TLV75201PDSQR
Brand: Texas Instruments
SKU: TLV75201PDSQR
Price: 0.63 USD
Availability: InStock

REF: TLV75201PDSQR Texas Instruments

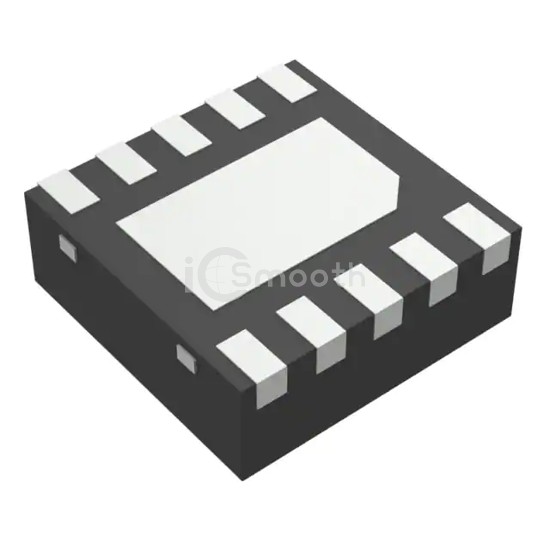

TLV75201PDSQR

Texas Instruments

IC REG LINEAR POS ADJ 1A 10WSON

TLV75201PDSQR is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR POS ADJ 1A 10WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 10-WFDFN Exposed Pad, current - output 1A.

Datasheet Request a Quote

In Stock: 9,488

Tiered Pricing USD

1+ $0.6300 —

10+ $0.4490 -29%

25+ $0.4024 -36%

100+ $0.3513 -44%

250+ $0.3270 -48%

500+ $0.3123 -50%

1,000+ $0.3002 -52% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	2
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	0.55V
Voltage - Output (Max)	5.5V
Voltage Dropout (Max)	1.05V @ 1A
Current - Output	1A

Current - Quiescent (Iq)	35 µA
Current - Supply (Max)	-
PSRR	50dB ~ 30dB (1kHz ~ 1MHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-WFDFN Exposed Pad
Supplier Device Package	10-WSON (2x2)
