TLV75101PDSQT

In Stock: 6,921

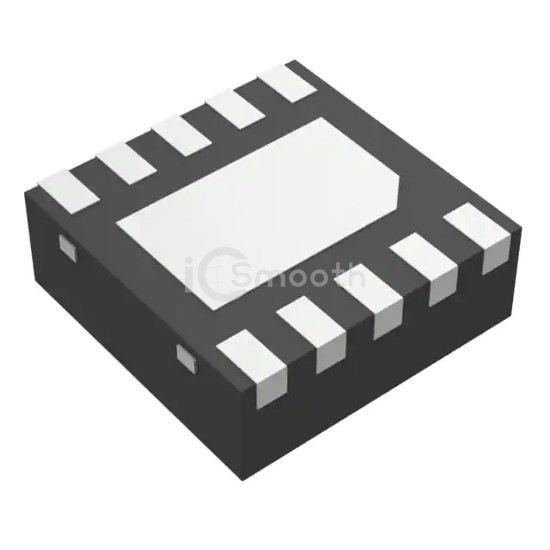

TLV75101PDSQT - Texas Instruments - PMIC - Voltage Regulators - Linear
REF: TLV75101PDSQT Texas Instruments
TLV75101PDSQT

Texas Instruments

IC REG LIN POS ADJ 500MA 10WSON

TLV75101PDSQT is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LIN POS ADJ 500MA 10WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 10-WFDFN Exposed Pad, current - output 500mA.

Datasheet Request a Quote

In Stock: 6,921

Tiered Pricing USD
1+ $1.0000 —
10+ $0.7220 -28%
25+ $0.6512 -35%
100+ $0.5739 -43% BEST

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators2
Voltage - Input (Max)6V
Voltage - Output (Min/Fixed)0.55V
Voltage - Output (Max)5.5V
Voltage Dropout (Max)0.88V @ 500mA
Current - Output500mA
Current - Quiescent (Iq)35 µA
Current - Supply (Max)-
PSRR50dB ~ 30dB (1kHz ~ 1MHz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case10-WFDFN Exposed Pad
Supplier Device Package10-WSON (2x2)
