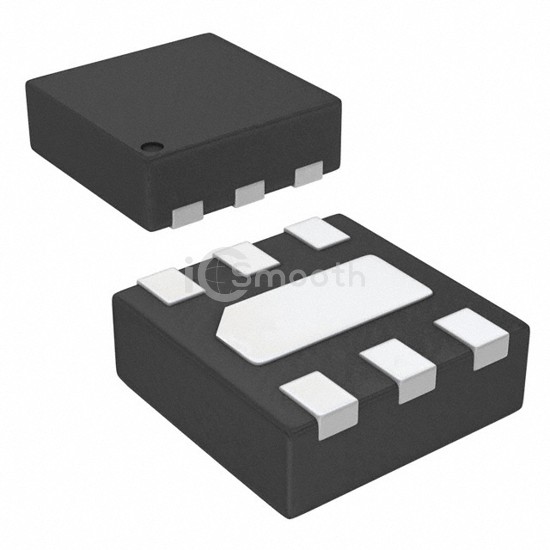

Name: TLV716120275PDPQT
Brand: Texas Instruments
SKU: TLV716120275PDPQT
Price: 0.92 USD
Availability: InStock

REF: TLV716120275PDPQT Texas Instruments

TLV716120275PDPQT

Texas Instruments

IC REG LIN 1.2/2.75V 6X2SON

TLV716120275PDPQT is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LIN 1.2/2.75V 6X2SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 6-XFDFN Exposed Pad, current - output 150mA.

Datasheet Request a Quote

In Stock: 4,264

Tiered Pricing USD

1+ $0.9200 —

10+ $0.6570 -29%

25+ $0.5920 -36%

100+ $0.5208 -43% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	2
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.2V, 2.75V
Voltage - Output (Max)	-
Voltage Dropout (Max)	1V @ 150mA, 0.45V @ 150mA
Current - Output	150mA

Current - Quiescent (Iq)	75 µA
Current - Supply (Max)	-
PSRR	80dB ~ 46dB (100Hz ~ 10kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-XFDFN Exposed Pad
Supplier Device Package	6-X2SON (1.2x1.2)
