TLV71125125DSET

In Stock: 8,995

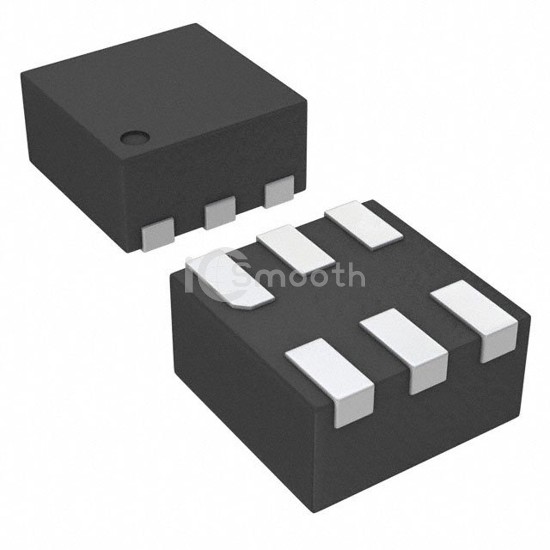

TLV71125125DSET - Texas Instruments - PMIC - Voltage Regulators - Linear
REF: TLV71125125DSET Texas Instruments
TLV71125125DSET

Texas Instruments

IC REG LINEAR 2.5V/1.25V 6WSON

TLV71125125DSET is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR 2.5V/1.25V 6WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 6-WFDFN, current - output 200mA.

Datasheet Request a Quote

In Stock: 8,995

Tiered Pricing USD
1+ $1.1200 —
10+ $0.8090 -28%
25+ $0.7316 -35%
100+ $0.6459 -42% BEST

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators2
Voltage - Input (Max)5.5V
Voltage - Output (Min/Fixed)2.5V, 1.25V
Voltage - Output (Max)-
Voltage Dropout (Max)0.25V @ 200mA, -
Current - Output200mA
Current - Quiescent (Iq)110 µA
Current - Supply (Max)-
PSRR80dB ~ 50dB (10Hz ~ 100kHz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case6-WFDFN
Supplier Device Package6-WSON (1.5x1.5)
