TLV70525PYFPT

In Stock: 6,573

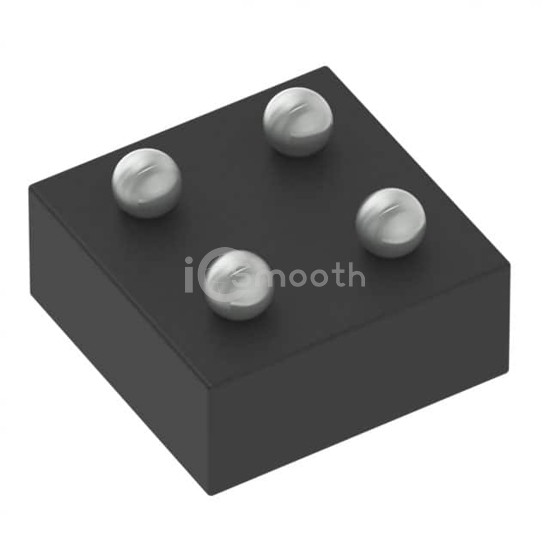

TLV70525PYFPT - Texas Instruments - PMIC - Voltage Regulators - Linear
REF: TLV70525PYFPT Texas Instruments
TLV70525PYFPT

Texas Instruments

IC REG LINEAR 2.5V 200MA 4DSBGA

TLV70525PYFPT is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR 2.5V 200MA 4DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 4-XFBGA, DSBGA, current - supply (max) 315 µA.

Datasheet Request a Quote

In Stock: 6,573

Tiered Pricing USD
1+ $1.0600 —
10+ $0.7650 -28%
25+ $0.6908 -35%
100+ $0.6092 -43% BEST

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)5.5V
Voltage - Output (Min/Fixed)2.5V
Voltage - Output (Max)-
Voltage Dropout (Max)0.25V @ 200mA
Current - Output200mA
Current - Quiescent (Iq)55 µA
Current - Supply (Max)315 µA
PSRR80dB ~ 55dB (10kHz ~ 1MHz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case4-XFBGA, DSBGA
Supplier Device Package4-DSBGA
