Name: TLV70236DSET
Brand: Texas Instruments
SKU: TLV70236DSET
Price: 1.04 USD
Availability: InStock

REF: TLV70236DSET Texas Instruments

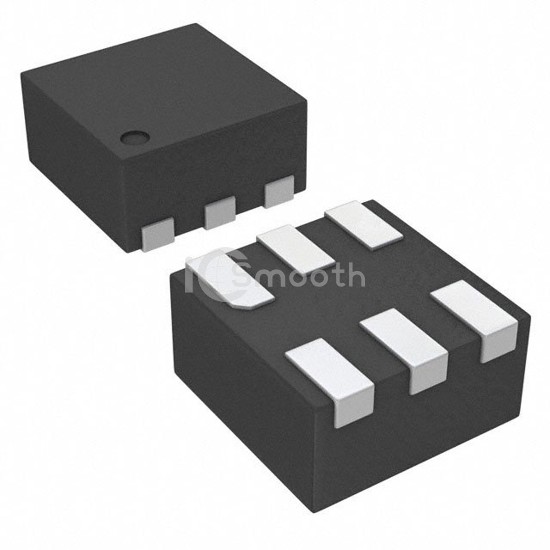

TLV70236DSET

IC REG LINEAR 3.6V 300MA 6WSON

TLV70236DSET is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR 3.6V 300MA 6WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 6-WFDFN, current - supply (max) 370 µA.

Datasheet Request a Quote

In Stock: 6,395

Tiered Pricing USD

1+ $1.0400 —

10+ $0.7490 -28%

25+ $0.6764 -35%

100+ $0.5963 -43% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	3.6V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.38V @ 300mA
Current - Output	300mA

Current - Quiescent (Iq)	55 µA
Current - Supply (Max)	370 µA
PSRR	68dB (1kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-WFDFN
Supplier Device Package	6-WSON (1.5x1.5)
