TLC7528CNSR

In Stock: 3,727

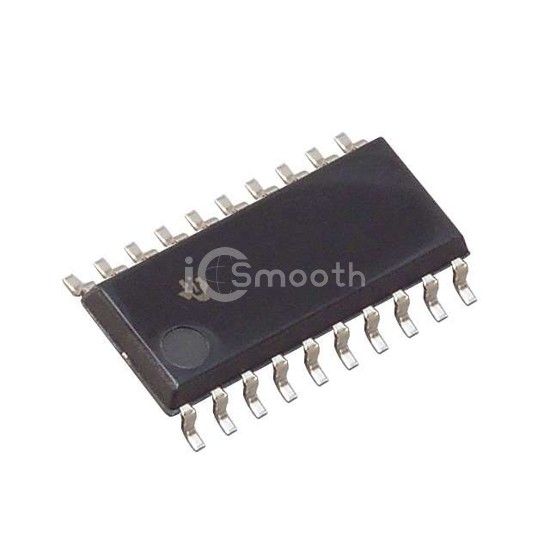

TLC7528CNSR - Texas Instruments - Data Acquisition - Digital to Analog Converters (DAC)
REF: TLC7528CNSR Texas Instruments
TLC7528CNSR

Texas Instruments

IC DAC 8BIT A-OUT 20SO

TLC7528CNSR is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Texas Instruments. IC DAC 8BIT A-OUT 20SO. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 5V ~ 15V, package / case 20-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 3,727

Specifications

16 parameters
Product StatusActive
Number of Bits8
Number of D/A Converters2
Settling Time100ns
Output TypeCurrent - Unbuffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal
Voltage - Supply, Analog5V ~ 15V
Voltage - Supply, Digital5V ~ 15V
INL/DNL (LSB)±0.5 (Max), ±0.5 (Max)
ArchitectureR-2R
Operating Temperature0°C ~ 70°C
Package / Case20-SOIC (0.209", 5.30mm Width)
Supplier Device Package20-SO
Mounting TypeSurface Mount
