Name: TLC5952DAP
Brand: Texas Instruments
SKU: TLC5952DAP
Price: 3.04 USD
Availability: InStock

REF: TLC5952DAP Texas Instruments

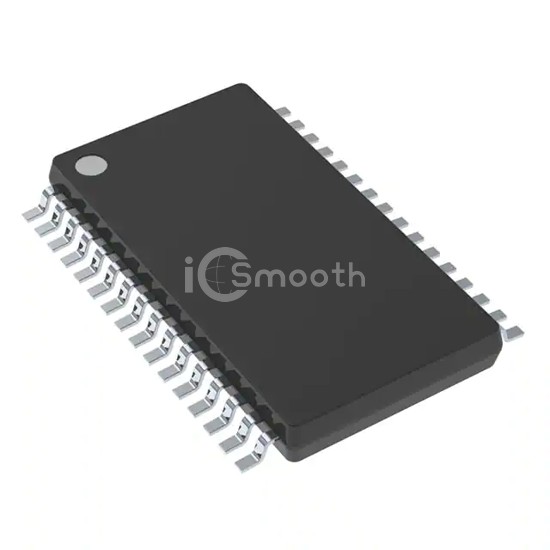

TLC5952DAP

IC LED DRV LIN 32HTSSOP

TLC5952DAP is a PMIC - LED Drivers manufactured by Texas Instruments. IC LED DRV LIN 32HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - output 15V, package / case 32-TSSOP (0.240", 6.10mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 515

Tiered Pricing USD

1+ $3.0400 —

10+ $2.2740 -25%

46+ $1.9804 -35%

138+ $1.8349 -40%

276+ $1.7637 -42%

506+ $1.7117 -44%

1,012+ $1.6622 -45%

2,530+ $1.6100 -47%

5,014+ $1.5789 -48% BEST

Specifications

16 parameters

Product Status	Active
Type	Linear
Topology	Shift Register
Internal Switch(s)	Yes
Number of Outputs	24
Voltage - Supply (Min)	3V
Voltage - Supply (Max)	5.5V
Voltage - Output	15V

Current - Output / Channel	26.2mA, 35mA
Frequency	35MHz
Dimming	-
Applications	Signage
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	32-TSSOP (0.240", 6.10mm Width) Exposed Pad
Supplier Device Package	32-HTSSOP
