TLC5540CNS

In Stock: 8,528

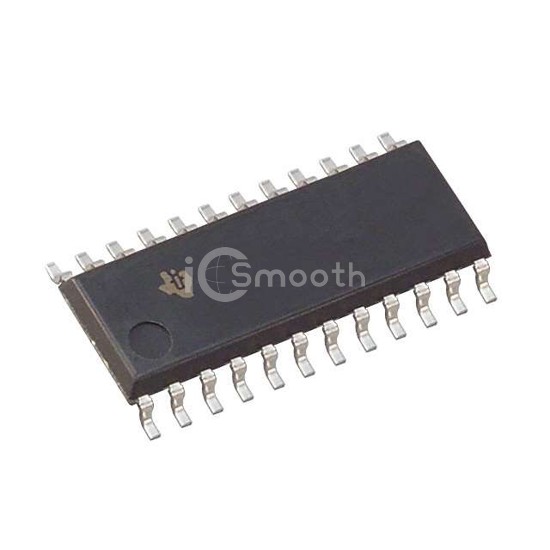

TLC5540CNS - Texas Instruments - Data Acquisition - Analog to Digital Converters (ADC)
REF: TLC5540CNS Texas Instruments
TLC5540CNS

Texas Instruments

IC ADC 8BIT FLASH 24SO

TLC5540CNS is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 8BIT FLASH 24SO. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 5V, package / case 24-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 8,528

Specifications

18 parameters
Product StatusActive
Number of Bits8
Sampling Rate (Per Second)40M
Number of Inputs1
Input TypeSingle Ended
Data InterfaceParallel
ConfigurationS/H-ADC
Ratio - S/H:ADC1:1
Number of A/D Converters1
ArchitectureFlash
Reference TypeExternal
Voltage - Supply, Analog5V
Voltage - Supply, Digital5V
Features-
Operating Temperature0°C ~ 70°C
Package / Case24-SOIC (0.209", 5.30mm Width)
Supplier Device Package24-SO
Mounting TypeSurface Mount
