TLC545CFN

In Stock: 8,475
TLC545CFN - Texas Instruments - Data Acquisition - Analog to Digital Converters (ADC)
REF: TLC545CFN Texas Instruments
TLC545CFN

Texas Instruments

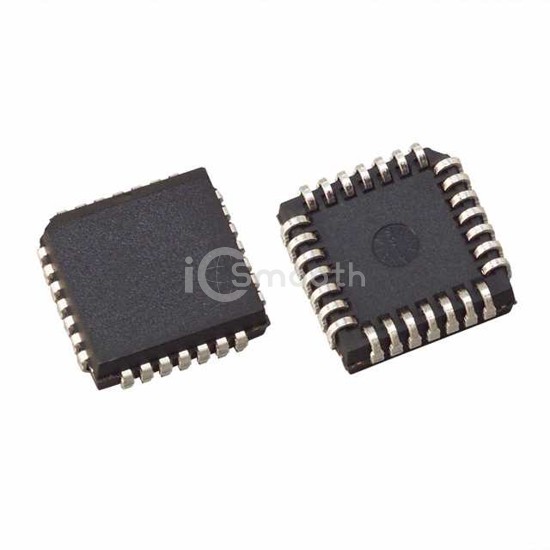

IC ADC 8BIT SAR 28PLCC

TLC545CFN is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 8BIT SAR 28PLCC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 5V, package / case 28-LCC (J-Lead).

Datasheet Request a Quote

In Stock: 8,475

Specifications

18 parameters
Product StatusObsolete
Number of Bits8
Sampling Rate (Per Second)76k
Number of Inputs20
Input TypeSingle Ended
Data InterfaceSPI
ConfigurationMUX-S/H-ADC
Ratio - S/H:ADC1:1
Number of A/D Converters1
ArchitectureSAR
Reference TypeExternal, Internal
Voltage - Supply, Analog5V
Voltage - Supply, Digital5V
FeaturesSelectable Address
Operating Temperature0°C ~ 70°C
Package / Case28-LCC (J-Lead)
Supplier Device Package28-PLCC (11.51x11.51)
Mounting TypeSurface Mount
