Name: TL064CDBRG4
Brand: Texas Instruments
SKU: TL064CDBRG4
Availability: InStock

REF: TL064CDBRG4 Texas Instruments

TL064CDBRG4

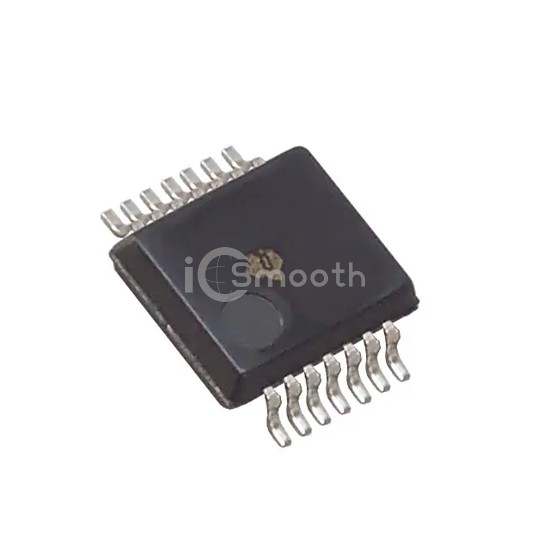

IC OPAMP JFET 4 CIRCUIT 14SSOP

TL064CDBRG4 is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Texas Instruments. IC OPAMP JFET 4 CIRCUIT 14SSOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, package / case 14-SSOP (0.209", 5.30mm Width), current - supply 200µA (x4 Channels).

Datasheet Request a Quote

In Stock: 3,772

Specifications

17 parameters

Product Status	Obsolete
Amplifier Type	J-FET
Number of Circuits	4
Output Type	-
Slew Rate	3.5V/µs
Gain Bandwidth Product	1 MHz
-3db Bandwidth	-
Current - Input Bias	30 pA
Voltage - Input Offset	3 mV

Current - Supply	200µA (x4 Channels)
Current - Output / Channel	20 mA
Voltage - Supply Span (Min)	10 V
Voltage - Supply Span (Max)	30 V
Operating Temperature	0°C ~ 70°C
Mounting Type	Surface Mount
Package / Case	14-SSOP (0.209", 5.30mm Width)
Supplier Device Package	14-SSOP
