Name: THS1209CDAG4
Brand: Texas Instruments
SKU: THS1209CDAG4
Availability: InStock

REF: THS1209CDAG4 Texas Instruments

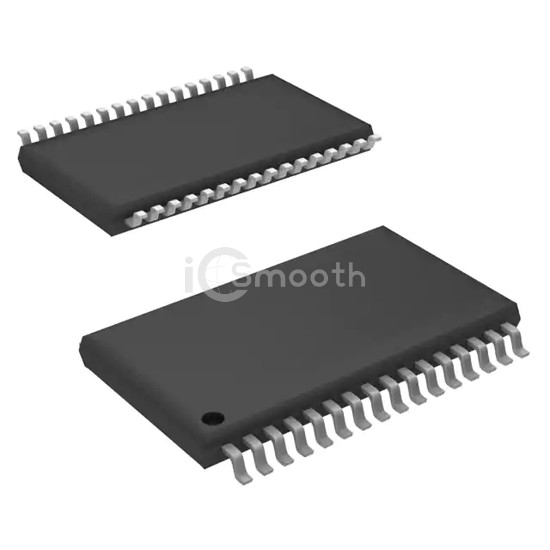

THS1209CDAG4

IC ADC 12BIT PIPELINED 32TSSOP

THS1209CDAG4 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 12BIT PIPELINED 32TSSOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 5V, package / case 32-TSSOP (0.240", 6.10mm Width).

Datasheet Request a Quote

In Stock: 3,452

Specifications

18 parameters

Product Status	Obsolete
Number of Bits	12
Sampling Rate (Per Second)	8M
Number of Inputs	1, 2
Input Type	Differential, Single Ended
Data Interface	Parallel
Configuration	S/H-MUX-ADC
Ratio - S/H:ADC	2:1
Number of A/D Converters	1

Architecture	Pipelined
Reference Type	External, Internal
Voltage - Supply, Analog	5V
Voltage - Supply, Digital	5V
Features	Simultaneous Sampling
Operating Temperature	0°C ~ 70°C
Package / Case	32-TSSOP (0.240", 6.10mm Width)
Supplier Device Package	32-TSSOP
Mounting Type	Surface Mount
